Folding bench racks for bench sets with backrest

We offer folding bench racks for bench sets with backrests for sale. Whether you need only bench frames or complete benches we also supply small quantities, different lengths, different colors and different widths of bench plates and backrests. These fittings have a reinforced hinge for folding the backrest because we assume that with a 40 cm wide bench plate also higher backrests will be mounted. The higher the backrest, the stronger is the load on the hinge and the folding safety device. The folding mechanism of the backrest consists of a flat iron. The flat iron is fixed to the main frame by a welding rivet and has a hook at the end. With the ready mounted bench, the backrest must first be opened, then the skin frame is opened and snapped into the snapper. After setting up the main frame, the hook is inside the frame and secures the backrest. This backrest safety device is stable, reliable and cannot be manipulated.

Please click on the picture for detailed view/further information.

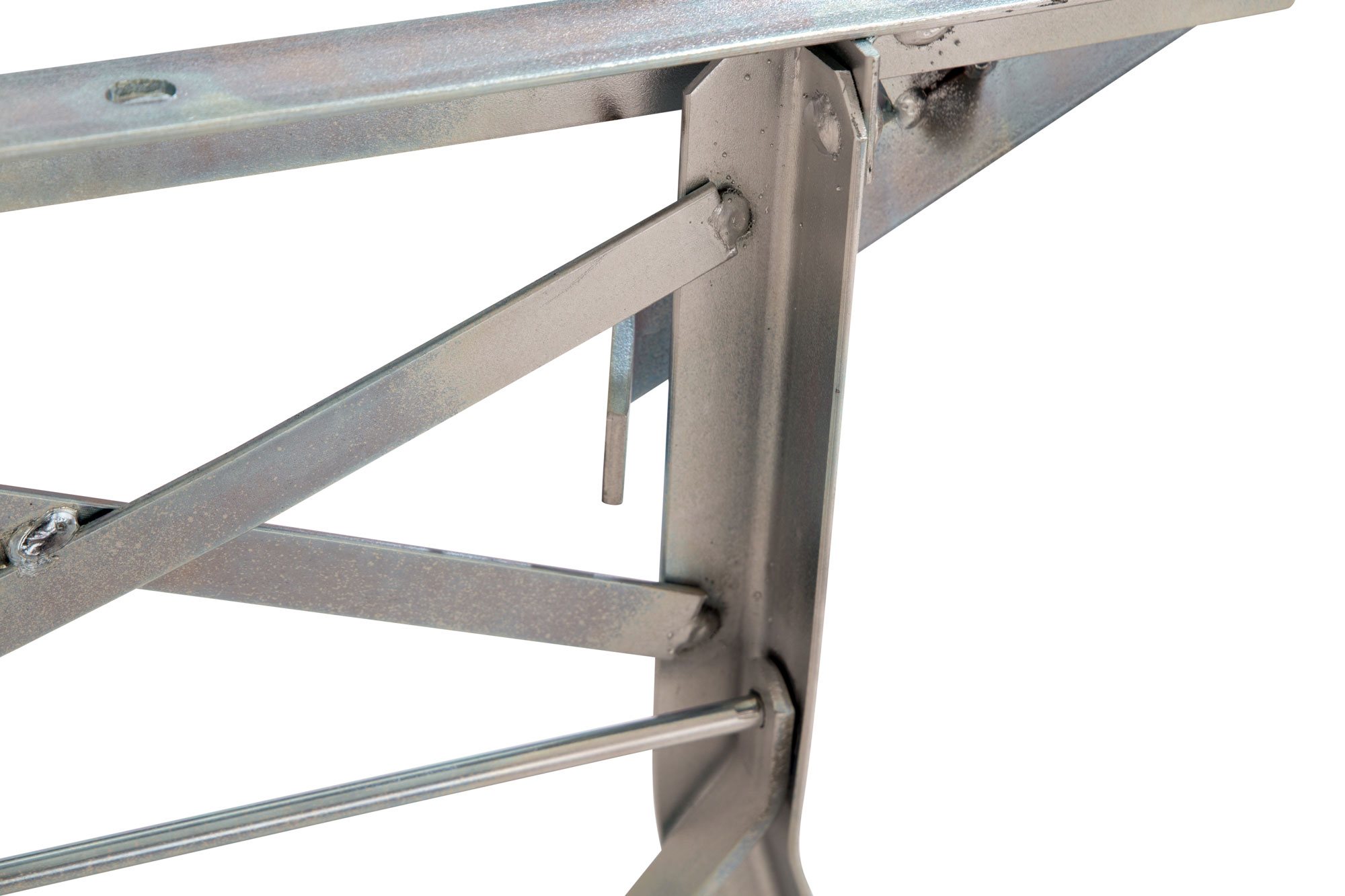

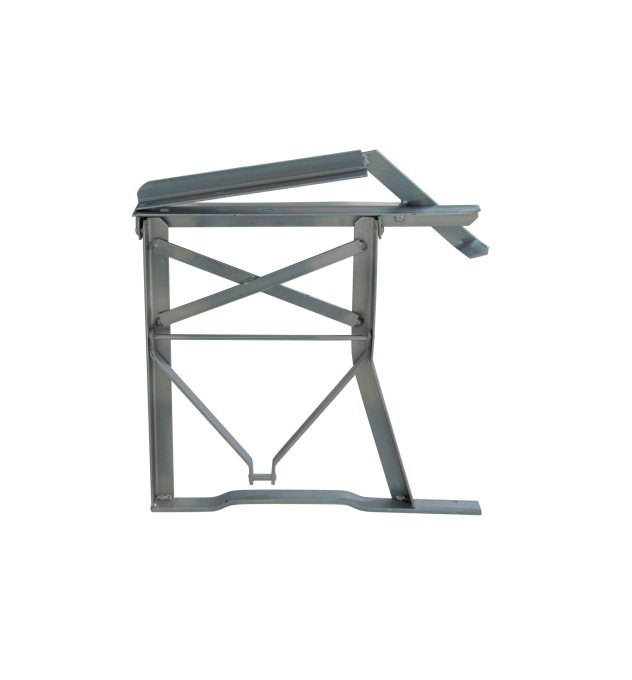

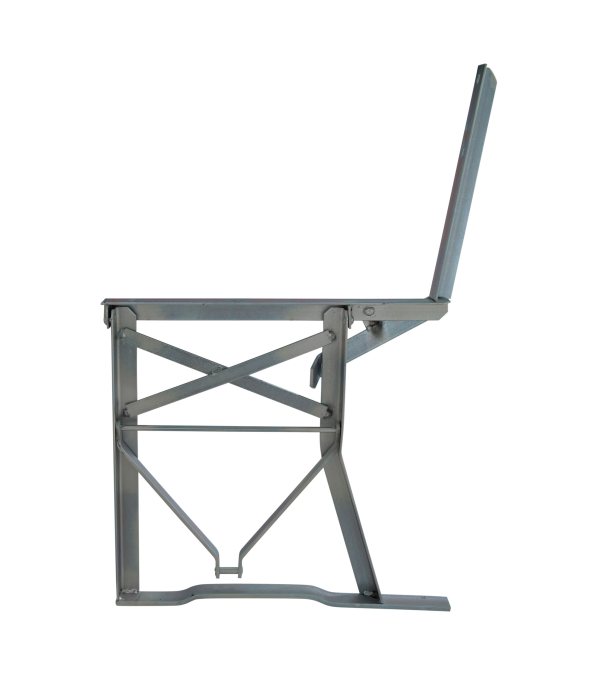

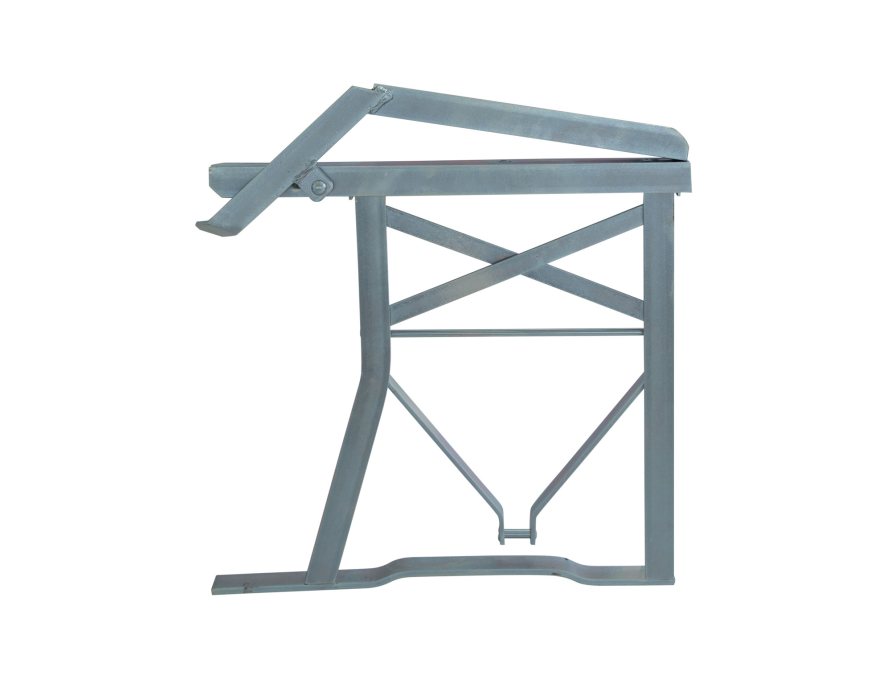

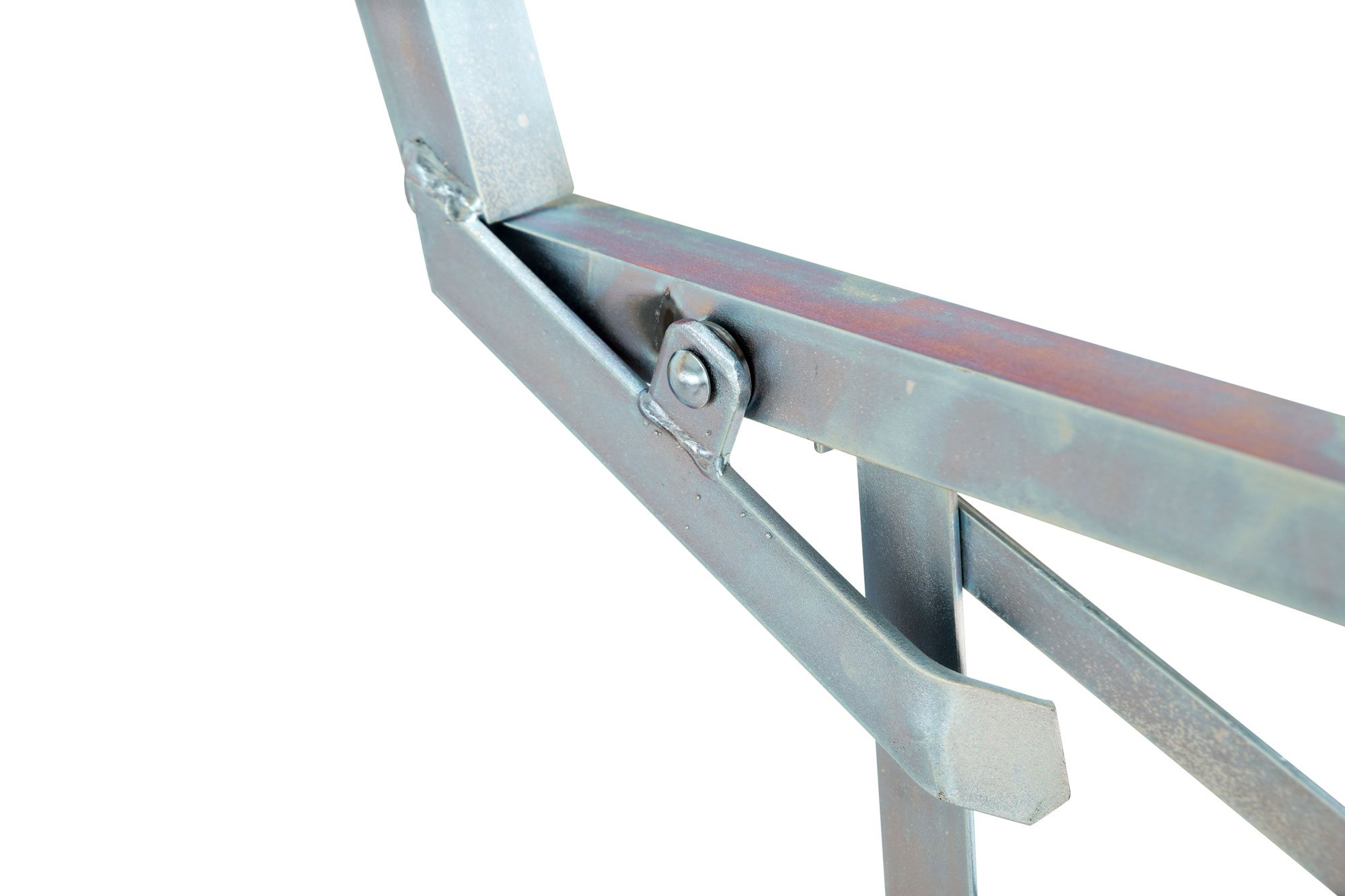

bench frame with backrest extra-width fittings for extra wide benches with backrest bench frame with backrest extra wide from the inside folding protection for Bench rack with backrest inside Folding safety device for bench frame with backrest from outside

Please note, bench racks with backrest must always be used in pairs.

There are right and left side at our bench racks with backrests. When you place an order, we will automatically put together the appropriate number of right and left racks for you. We call the left bench rack if you sit on the bench the rack to your left and sitting on the bench the right one.

  • Bench frame Model: 209
  • Standard Colour: galvanized
  • Weight: 4,6 kg

Back to overview: Folding bench racks for bench sets xxl with backrest Model 209
