Additional height of table table frames and bar table frames painted or galvanized
Very sturdy fittings and base frames for pub, picnic, garden and bar tables, bar tables, garden furniture and festival pub, picnic, garden and bar tables in genuine brewery quality, directly from the manufacturer.
Please note that our standard bench racks and table racks are offered as spare parts without snapper screws and not in pairs. If you need snap locks or screws, they can of course be supplied with the product.

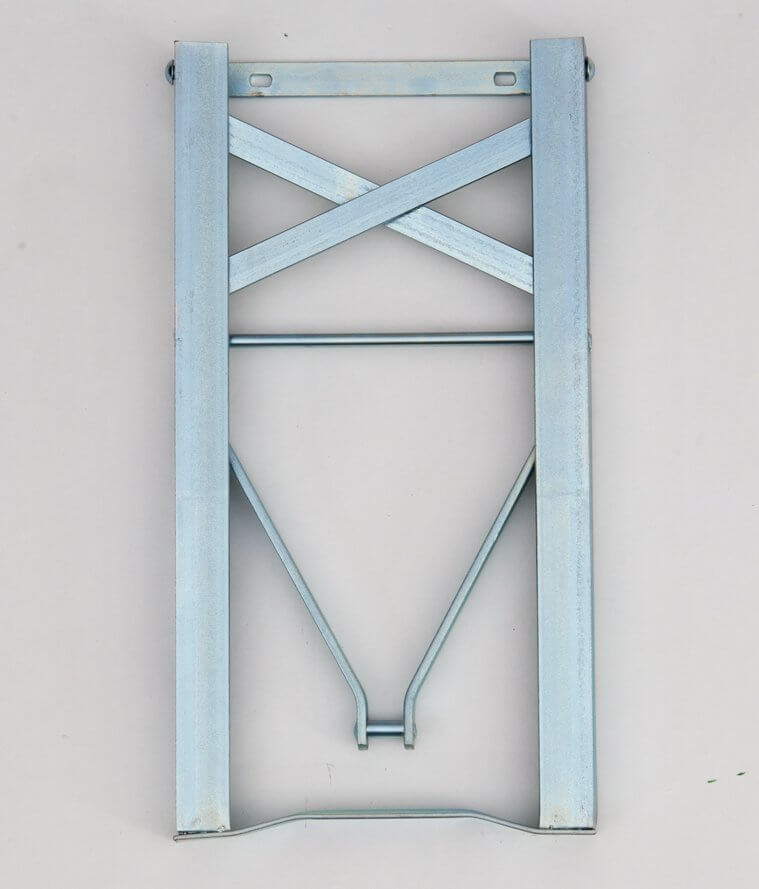

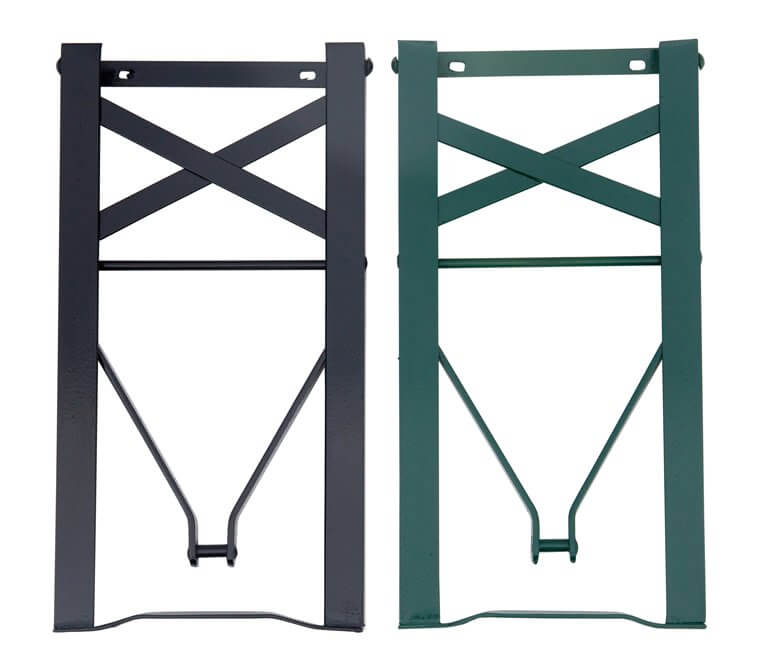

Bench racks for pub, picnic, garden and bar tables standard
Fittings or frames no.201 for benches for marquee sets without backrest, are green lacquered, galvanised or black lacquered. This version is EXTREM stable.

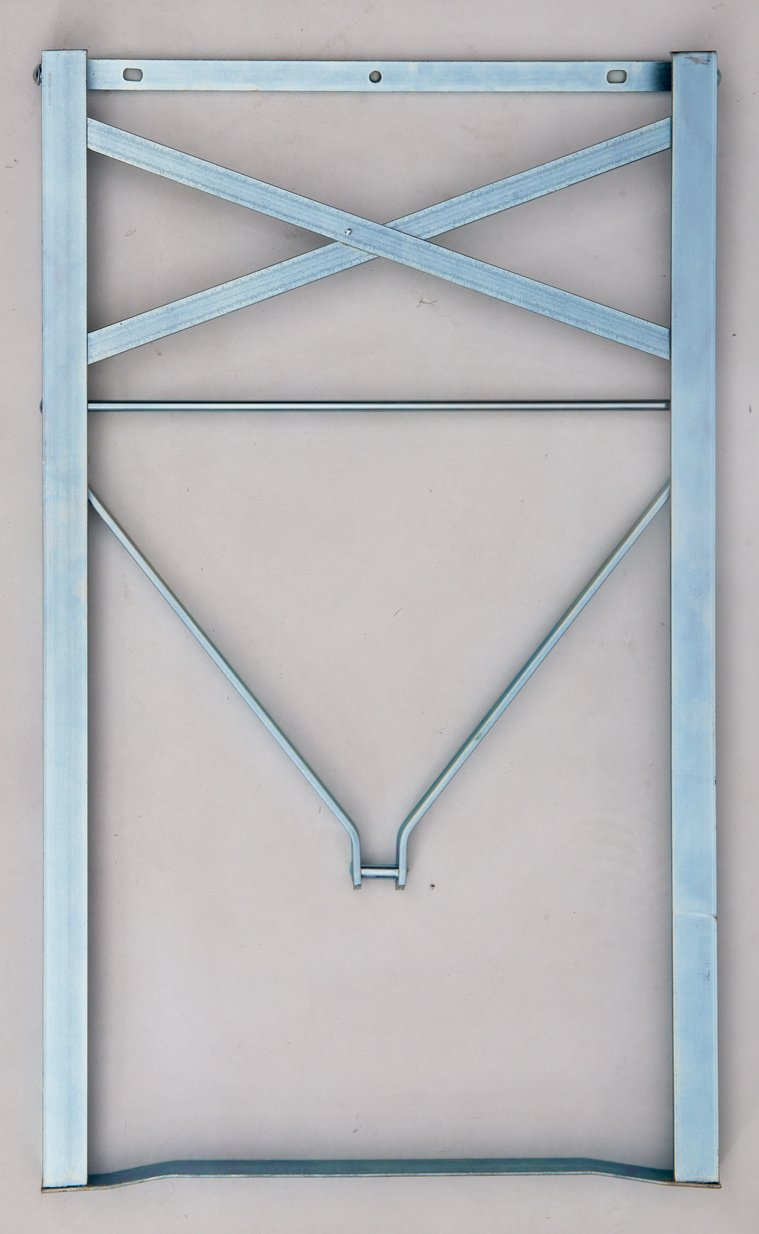

Frame No.202 for tables is optionally galvanised or lacquered.
Angle steel 30 x 30 x 3 mm
Boom 4 x 25 mm flat steel with 10 mm round bar, for snapping in the snap,
an extra stable flat iron 4 x 25 mm with three drill holes, for fixing the wooden panels.
Together with our table extension, our table frames create a perfect standing table. The racks are NOT CONTACT WELDED, because contact welded racks very often loosen the welds.
Height optionally 745mm or 715mm
width = 440mm
Weight 4000g
Bench frame galvanized
Bench frame no.201 for standard marquee benches. These fittings are available either galvanised or lacquered.
Angle steel 30 x 30 x 3 mm
Boom 4 x 25 mm flat steel with 10 mm round bar for snapping in the snap
The frames are NOT CONTACT WELDED, as the welds are often loosened in contact welded frames.

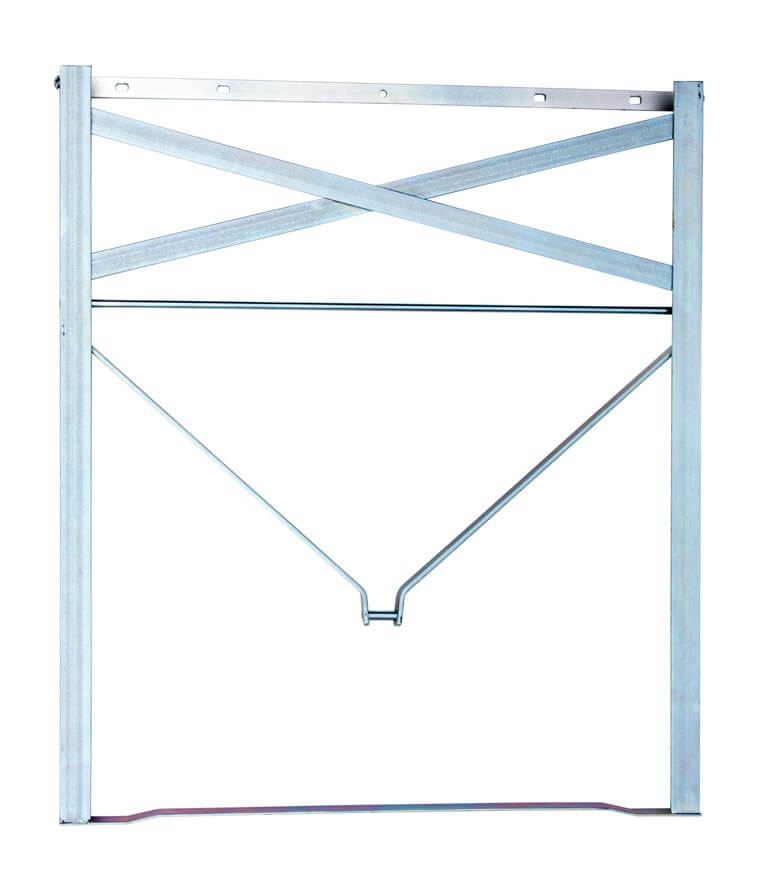

Table frame extra wide
Frame No.204 for tables, optionally galvanised or lacquered.
Angle steel 30 x 30 x 3 mm
Boom 4 x 25 mm flat steel with 10 mm round bar for snapping in the snap
extra stable flat iron 4 x 25 mm with three holes for fixing the wooden plates
The racks are NOT CONTACT WELDED, because contact welded racks very often loosen the welds. We recommend not to use wide table frames in combination with a table extension.
Height = 745mm
Width 640mm
Weight = 4000g

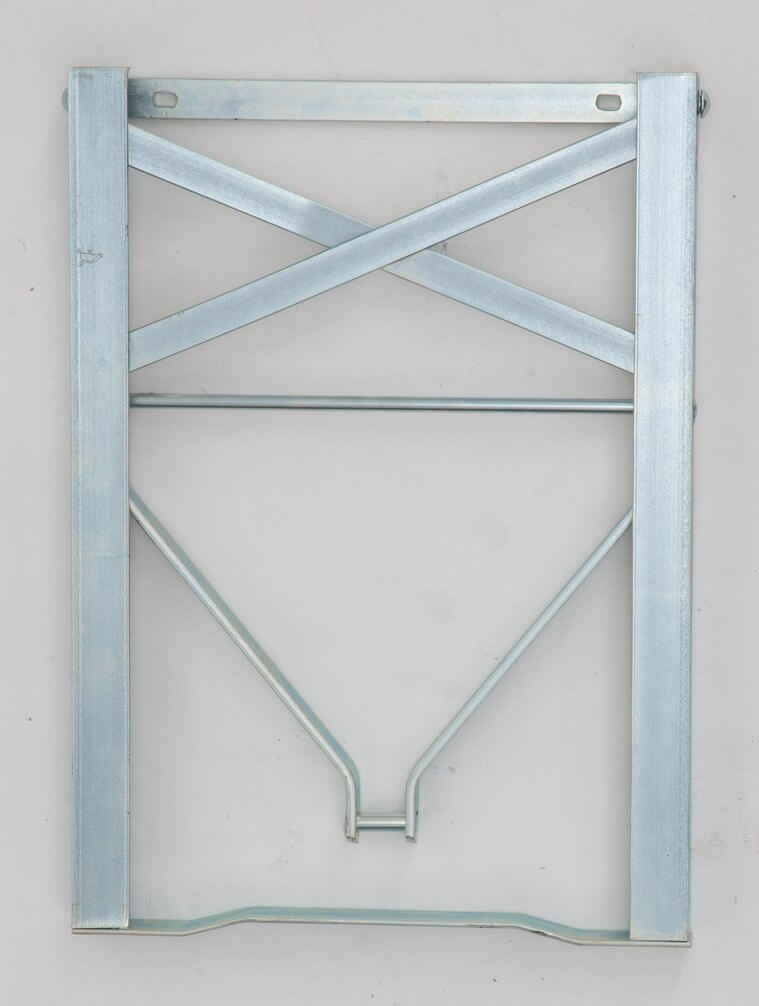

Bench frame extra wide
Frame No.203 for pub, picnic, garden and bar tables without backrest, with a bench width of more than 35 cm. This frame is also suitable as a table frame for children's sets and can only be supplied galvanised.
Height 453mm
width = 318mm
Weight 2700g

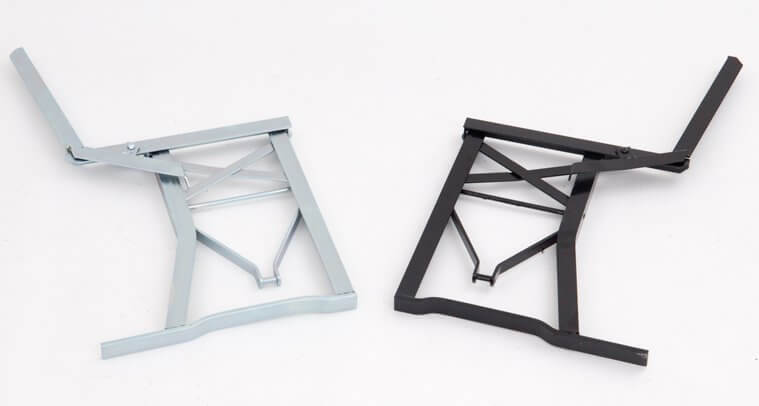

Rack for benches with backrest
Fittings or frames no.208 for benches with backrest. Optionally galvanised or lacquered.
Angle steel 30 x 30 x 3 mm
Boom 4 x 25 mm flat steel with 10 mm round bar, for snapping in the snap
base plate 30 x 8 mm automatic folding safety
The automatic folding safety device of the backrest ensures that the backrests do not fall over when the bench is mounted. This prevents injuries or damage to objects. The frames are NOT CONTACT WELDED, as the welds very often come loose on contact welded frames.
Galvanised fittings or frames No.209, for the production of benches with backrests, with a 40 cm wide seat. There is always a left and a right variant for benches with backrests. This applies to model 208, of course bench frames are supplied with backrests half left and half right.

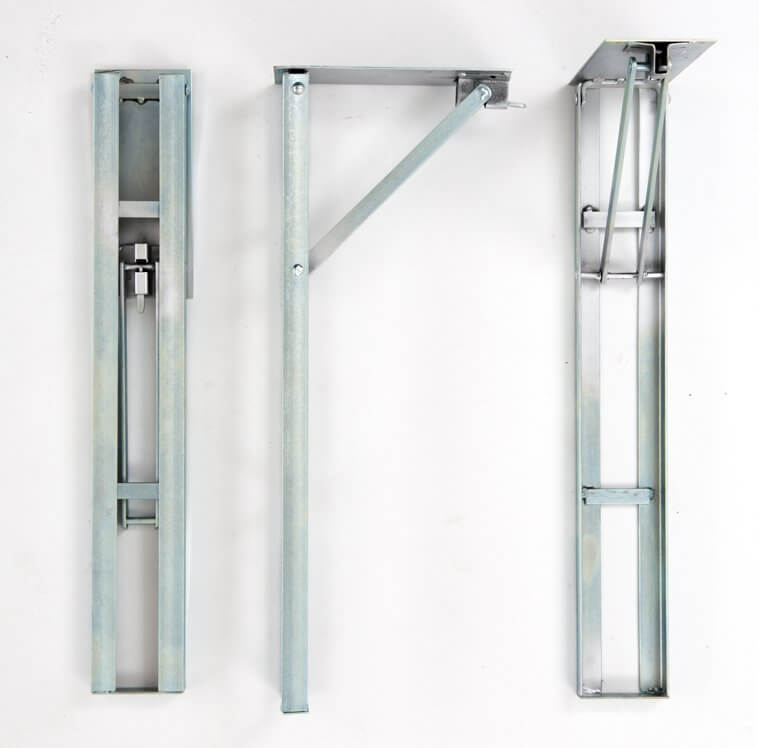

Universal Table Frame No. 206: This table frame can be used for all table sizes from small to XXXL. It is a narrow table frame, completely welded to an iron plate with a catch. Simply screwed under a top, you get a folding table. The frame can be simply screwed from below with Spax, no holes are needed in the table top. The frame is available for four-legged tables and in an installation height of 71 cm or 74 cm. On request please use exactly the following designation: table frame no. 206. A combination with our table extension is not possible.
Table frame for pub, picnic, garden and bar tables with wood cladding.
The frame model 236 is a folding mechanism or a shortened and reinforced table frame. The lateral angle irons have holes for screwing together wooden panels, wood-based materials or plastic panels as table legs. The material screwed on is the actual table base, the frames are only the folding mechanism.
Recommended for pub, picnic, garden and bar tables with table widths of 60 cm - 90 cm, for narrower tables the Model 237 bench racks can be used. Depending on the shape of the woods used, it is also possible to use tables with a width of 47 cm or more.

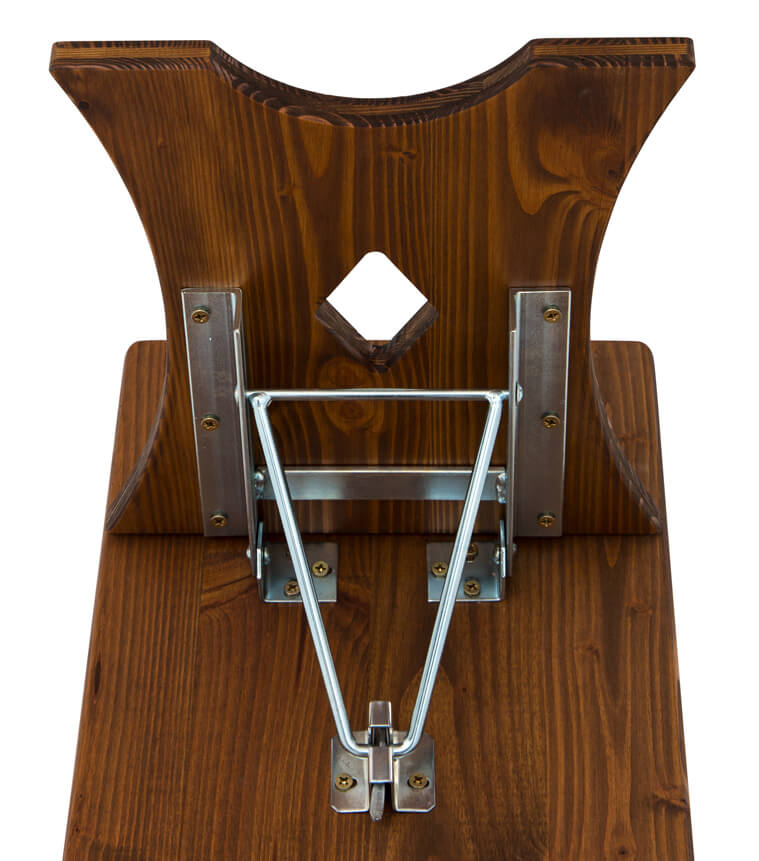

Bench frame for pub, picnic, garden and bar tables with fairing.
Folding mechanism for benches and tables up to a width of 60 cm. pub, picnic, garden and bar tables with wooden legs are just as stable as those with metal frames, but with three-layer wooden plates as bench and table legs they are even more stable.
The screw connection with the wooden boards is made on one side with chipboard screws, but continuous screws can also be used. When using single-layer wood panels, we recommend continuous screwing.

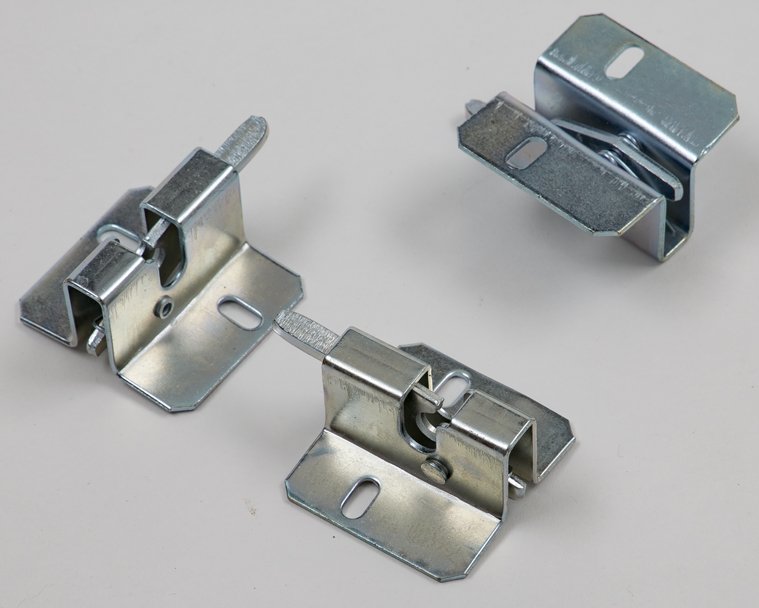

Snapper no.211 galvanized, with EXTRA STRONG spring. Our snap locks are so stable that we have never had to supply a snap lock as a spare part for marquee sets equipped with our snap locks. The snap locks are also used by us for standing tables as folding safety devices. Other companies use our snap locks for table tennis tables and in vehicle construction to fasten truck tarpaulins.

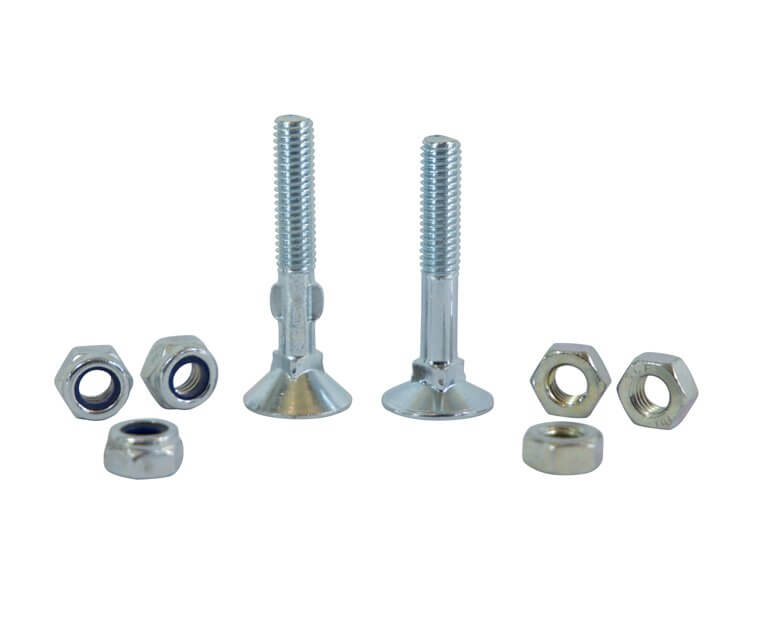

Screws for pub, picnic, garden and bar tables with flat head
Flat head screws with 16 mm head for continuous screwing of the fittings of various pub, picnic, garden and bar tables. Left picture: Stop nuts M6 with nylon stop ring, next to them a ribbed screw with high square M6X42 and flat head. Half right a flat head screw M6X40 DIN 605 with high square neck. Right nuts M6.
Bench frame no.207 for benches and table frame no.205 for tables, welded with a triangular iron plate and catch.
These racks are the ideal solution for marquee sets, which have to get by without drillings due to particularly high-quality plates.
This has the following advantage, the racks fit on all plates, simply screw from below ready. The table frames are best suited for our table extension. Please use the following exact designation on request: No.205 table frame Standard with catch and triangular iron plate or No.207 bench frame Standard with catch and triangular iron plate.

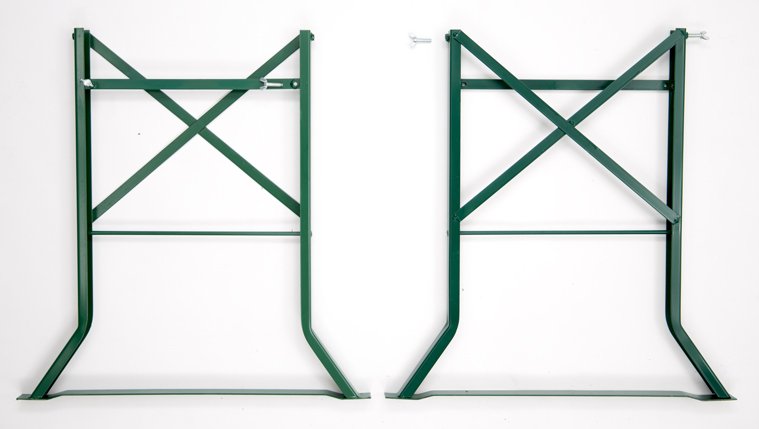

Table elevation
Table elevator no.225. This table elevator turns all tables, with a frame width of 42 - 45 cm, into a comfortable, very stable standing table within a few seconds. Our recommended table widths are from 50 to 100 cm. table elevations can be fastened to the side or front of the table frame with screws. The frontal attachment is the better variant.

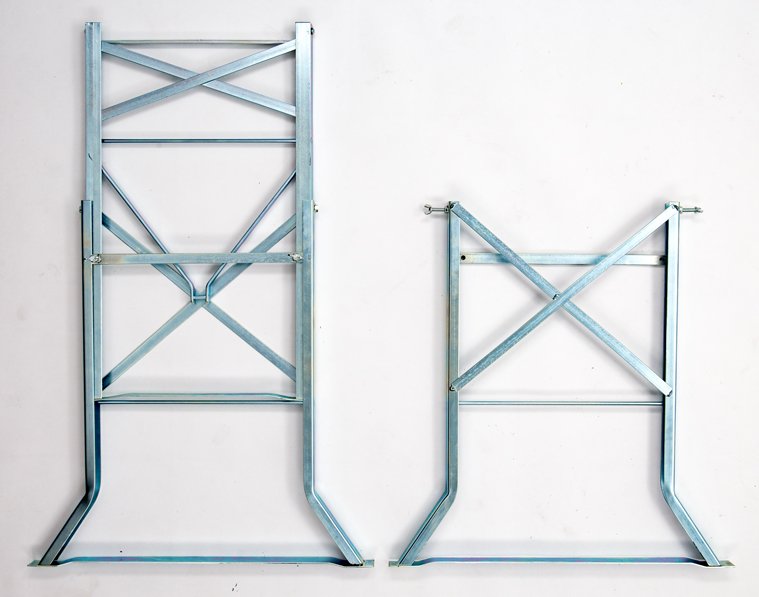

Table elevation galvanized
The table elevator No.225 galvanized version is available in two different widths
for rack widths from 42-45 cm
for rack widths from 45-48 cm
The table extensions can be attached to the table frame with wing screws on request. The wing screws can be supplied as an option, but are not absolutely necessary.
Table increase shipping
When fastening with screws, we recommend that you tighten the screws only as tightly as necessary and do not use any tools in order to avoid damage. Up to 5 table elevations can be shipped in one parcel by DPD. Of course, commercially available hexagon head screws can also be used for fastening. When shipping 2 parcels of five each, this is sufficient for five tables.

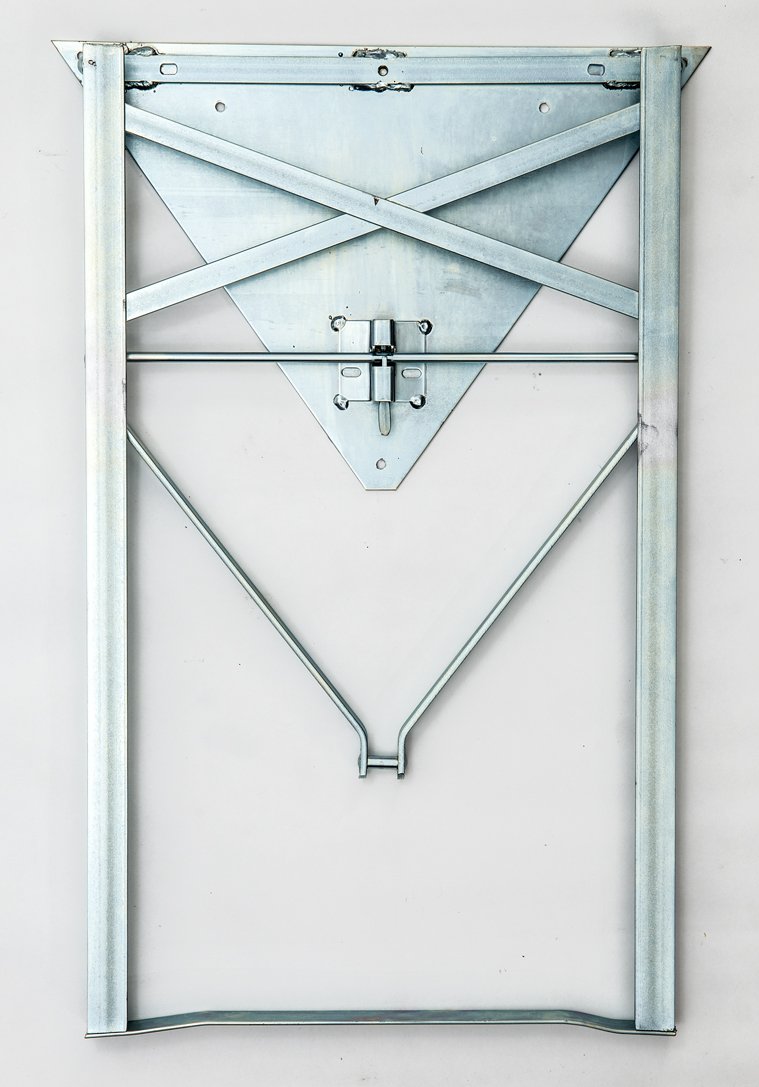

Fittings for tables on iron tops
Our fittings for tables No.205 are intended for high-quality table tops with a length of at least 160 cm and a width of 50 cm - 80 cm. On request, please use the following exact designation : No.205 Standard table frame with latch and triangular iron top. This table frame corresponds exactly to the dimensions of our standard table frame No. 202, only the installation height is 3mm higher due to the welded iron plate. For all other dimensions please refer to the drawing of model 202.
Table rack for counters
This frame is suitable for counters and tables, are suitable for a width of 70 cm to 100 cm. The counter frame is made of galvanized square tube 25 mm X 25 mm, has integrated floor protectors made of PVC, is extremely torsion-resistant and stable. It is available in an installation height of 55 cm to 96.7 cm. These fittings are ideal for building shelves.
Height max. = 96.7 cm
Height min. = 55.0 cm
width 64 cm
Number of bores = 5

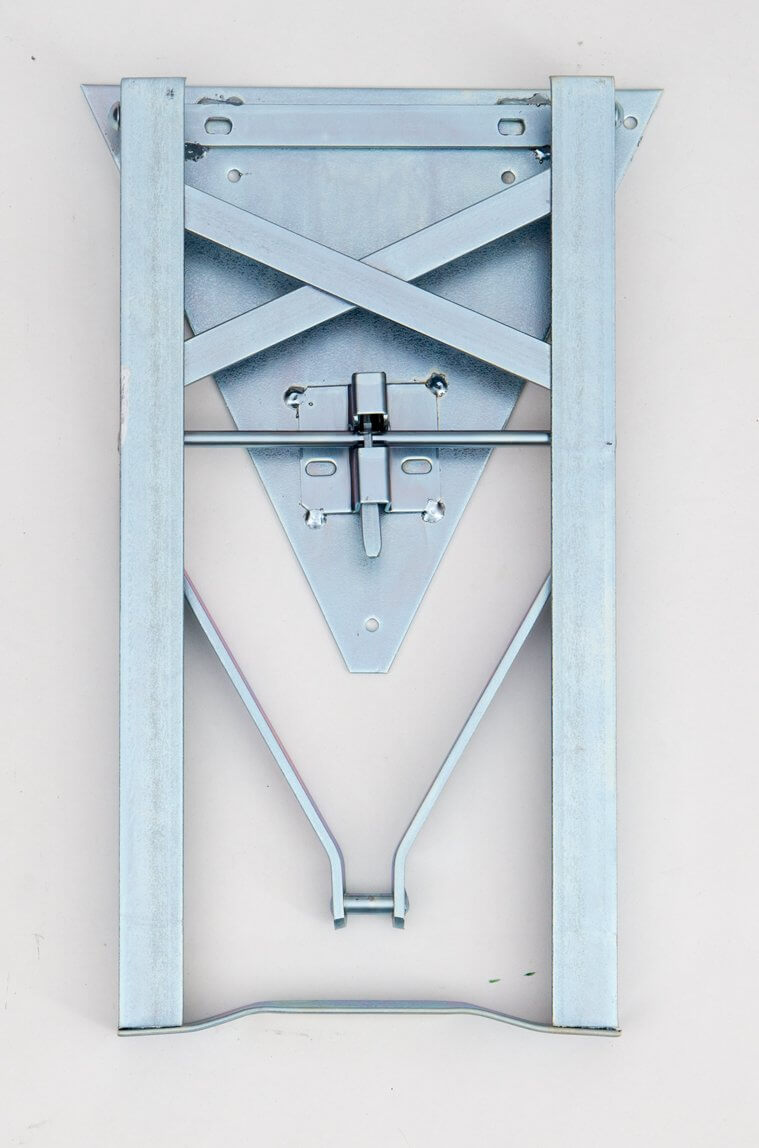

Fittings for benches on iron plate
On request please use exactly the following designation : No.207 bench rack Standard with snap and triangular iron plate. Our bench racks with iron plate are a completely functioning unit. Simply screw two bench racks under a wooden plate and you have a functioning bench. You do not need any drillings or continuous screwings. Because the iron plate absorbs all shear loads, only small wood or chipboard screws are needed to fix the frame. These racks are optimal for noble wood plates.
Frame for tables with large legroom
T-frames for tables No.223. These table frames are extra slim, with a wide base, welded with catch and iron plate. The racks can be used for table widths from 45 cm to 80 cm and a length from 110 cm. Weight approx. 10 kg per frame. This table frame version is available with a height of 74.5 cm. The table frame is not compatible with a table extension
.
Height = 74 cm
Width at the bottom of the foot = 50 cm
Width of frame without base = 11 cm

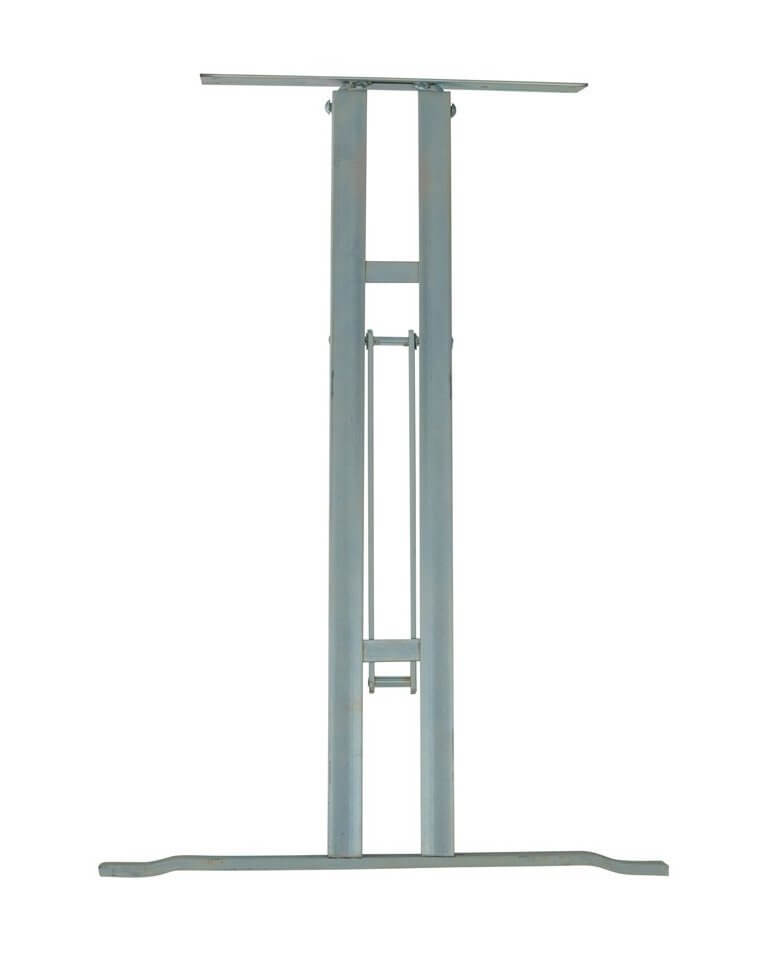

Table frame T-shape low
The table frame No.229 is suitable for tables with a low installation height and is also required as a folding table for tables with a total length of less than 164 cm. In combination with a 27 mm thick wooden strip under the table frame and snap lock, the frame can be folded over another one.
Table frame for pub, picnic, garden and bar tables in T-form extra wide.
The table frame model 210 is suitable for all pub, picnic, garden and bar tables with a table length of over 160 cm and a table width of 80 cm or more. The surface is exclusively galvanised, but can be powder-coated in almost all colours. A galvanic zinc plating is the optimal primer for powder coating, thus rust bubbles under the coating is avoided to 100 %.

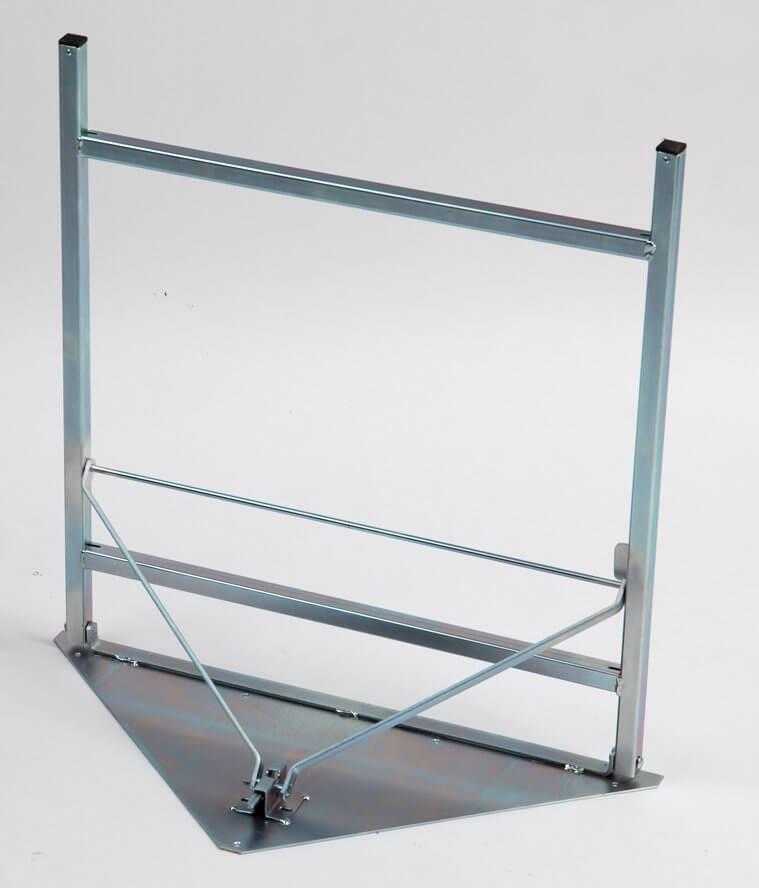

No. 216 This is the most stable frame for tables, made of galvanized square tube with gate and welded iron plate. This frame is suitable for tables from 75 cm to 110 m wide. The iron plate is also stable enough to support individual boards.

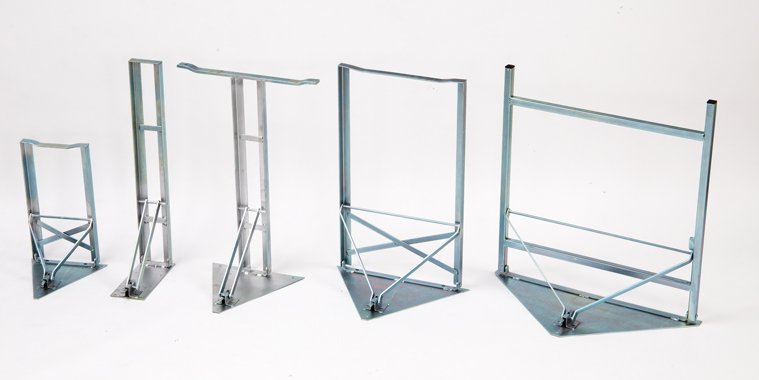

Table frames with iron plate and catch
All variants of our table frames and a bench frame with iron plate, for benches and tables at a glance.
From left to right
bench frame welded to triangular iron plate
Universal table frame with iron plate and catch welded
( For four-legged tables ) T-frame height 74 cm
Table frame with triangular iron plate and gate welded
Table frame with square tube, triangular iron plate and gate welded
Bench frame benches with wooden legs
The bench frame No.233 is suitable for producing benches with wooden legs made of squared lumber or boards. In principle it is a folding mechanism based on a table. Simply screw wooden members of any length to the outer angle irons and you have a fully functional, particularly stable folding frame.

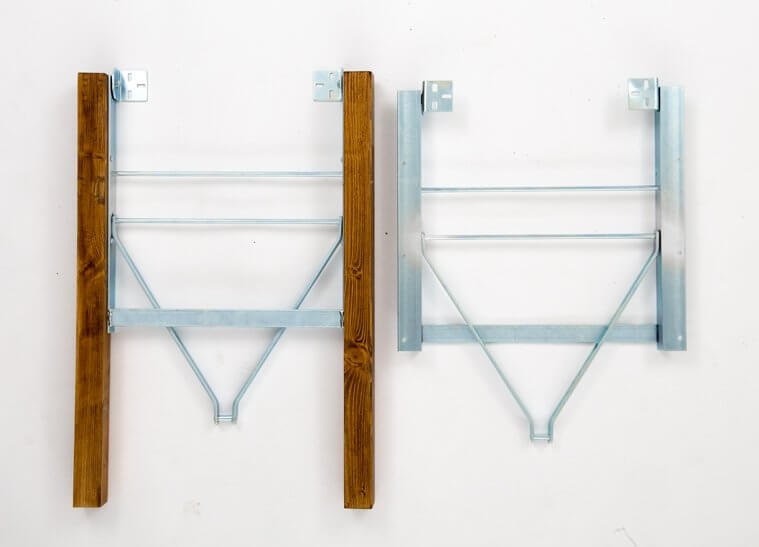

Table frame pub, picnic, garden and bar tables with wooden legs
The table frame No.232 is suitable for the production of tables with a table width of 50 to 80 cm. The table legs can be squared lumber, round lumber or even complete tops, which cover the entire front side of the tables and no folding mechanism can be seen.
When using tops, it may be necessary to use small slats as spacer wood. This also applies to the bench racks.

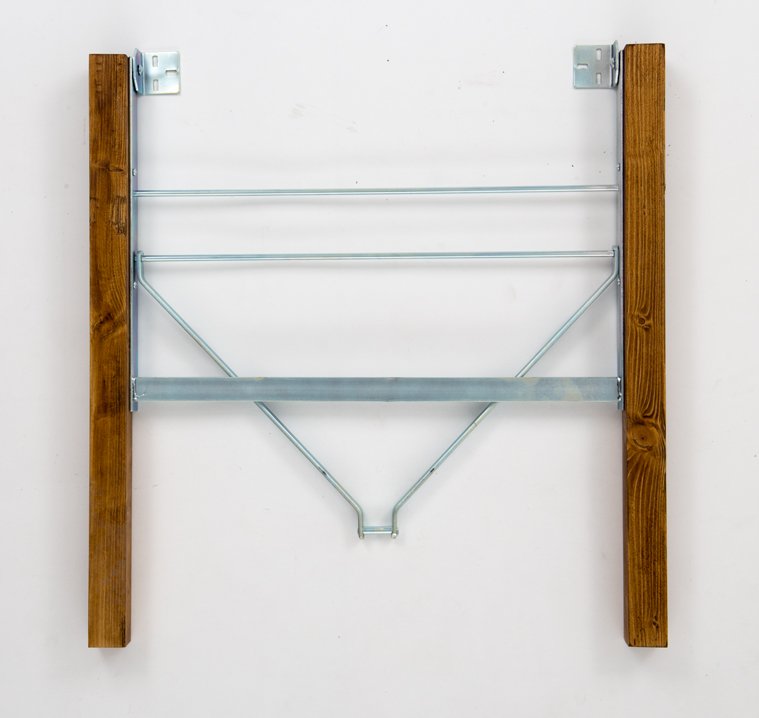

Fittings for tables with wooden legs extra wide.
table frame no.234 for wide tables with wooden legs. This frame is suitable for table widths from 70cm to 100cm and more, as far as table width is concerned, these frames are very flexible. The wooden legs are attached at a width of 610mm, if the wooden legs are 5cm thick then at least a table top with 71cm width is to be used.

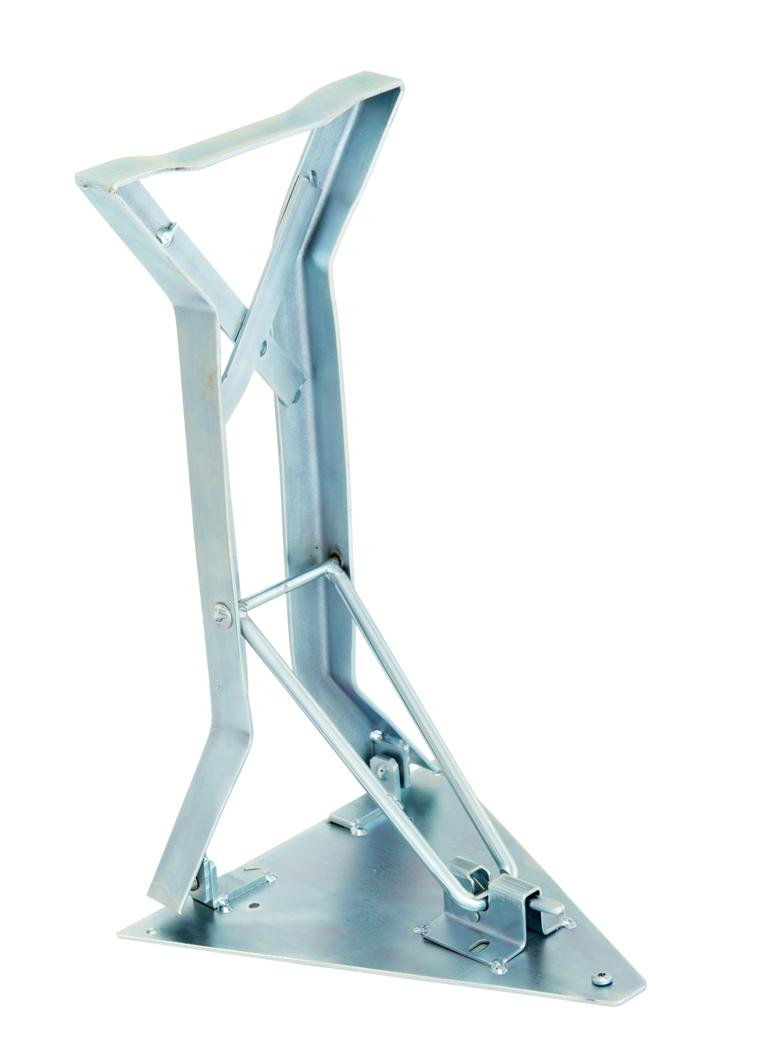

Bench racks with narrow column in the middle
Bench frames welded to an iron plate with a catch are ideal for invisible screw connections on high-quality wooden plates. The bench frames are positioned on the underside of the bench plates and screwed together with wood screws. The large-surface screwing of the wooden plate and the iron plate creates an extremely strong and durable connection, continuous screwings are not necessary.

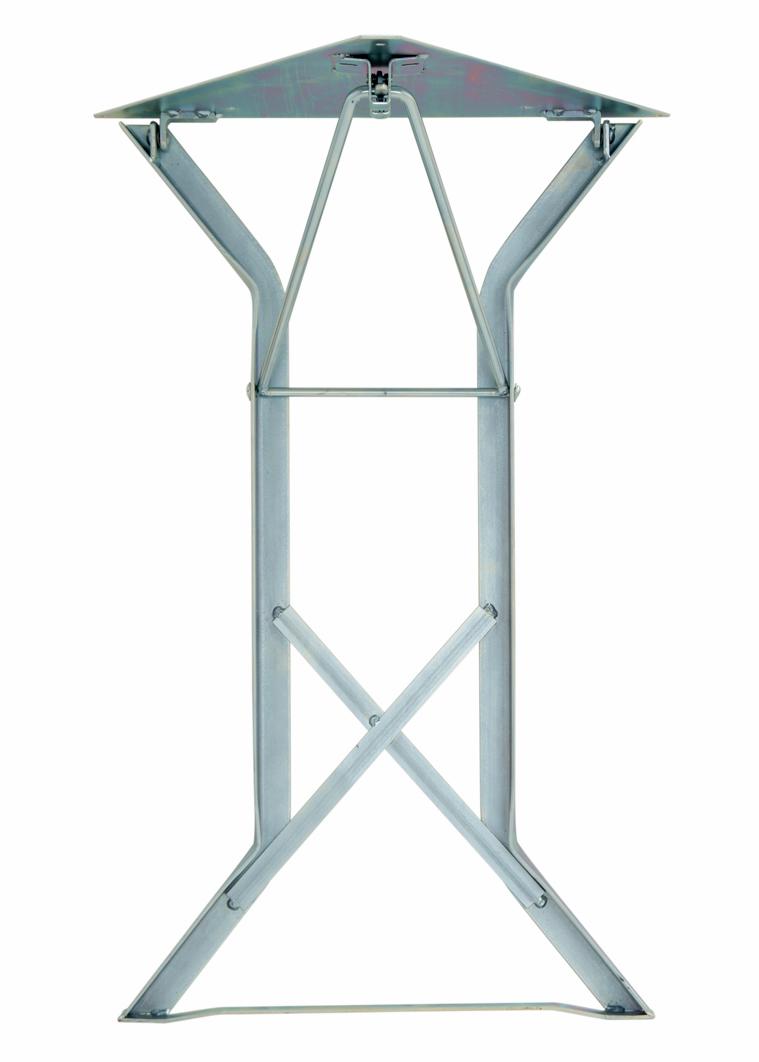

X-shaped table frame for pub, picnic, garden and bar tables
The table racks model 239 have the internal designation, table racks X-Form. The slim form gives the pub, picnic, garden and bar tables a very elegant appearance. Stability and stability is identical with standard frames in absolute brewery quality, from our production. The colour of the frames is galvanized. The galvanized frames can be powder-coated in the colour of your choice. For an additional powder coating, the standard running time is approx. 7 working days.
As the table frames are not suitable for folding on top of each other, we recommend a minimum table length of 160 cm. The recommended table width is 50 cm to 80 cm.

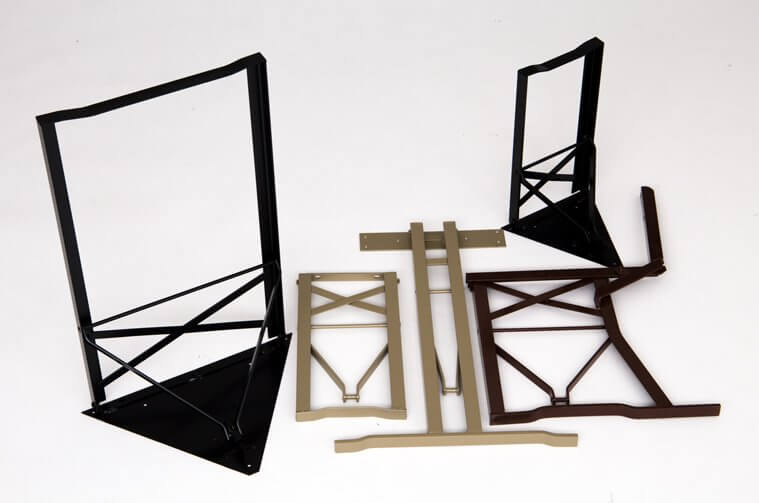

Our fittings are available powder-coated in almost all RAL colours, as a colour example on the left in the illustration a table frame 205 with triangular iron top RAL 9005 matt black, in the middle a table frame 229 low installation height RAL 1035 pearl beige and on the right a bench frame with back RAL 8015 chestnut brown.

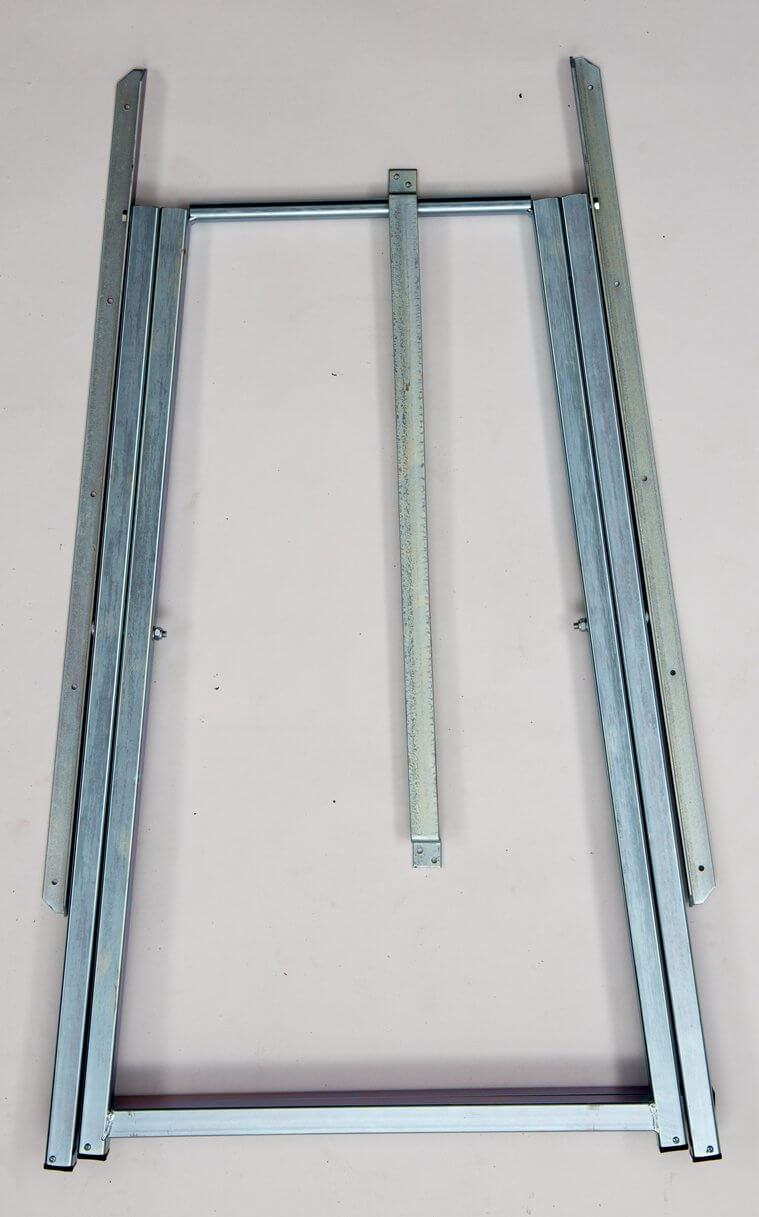

Underframe for round tables
Scissor frame no.213, galvanized for round tables with a diameter of 100 to 150 cm, as well as for square tables. Installation height 66 to 80 cm. Square tube 30 x 30 x 3 mm. The special advantage of a scissor frame is the complete legroom for all persons sitting at the table. It is very stable and does not shake at all.
Underframe for high tables
Scissor frame No. 214 optionally galvanized or chrome-plated, for high tables with a diameter of 80 to 120 cm, as well as for square tables. Installation height 110 cm Square tube 30 x 30 x 3 mm.

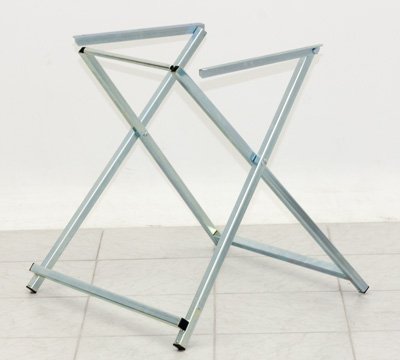

Scissor frame for bar, pub, garden, picnic and bistro tables
Folding frames for bar, pub, garden, picnic and bistro tables No. 224. These frames are suitable for round and square folding bar, pub, garden and bistro tables, lounge tables and picnic tables with a top size from 70 cm to 110 cm.

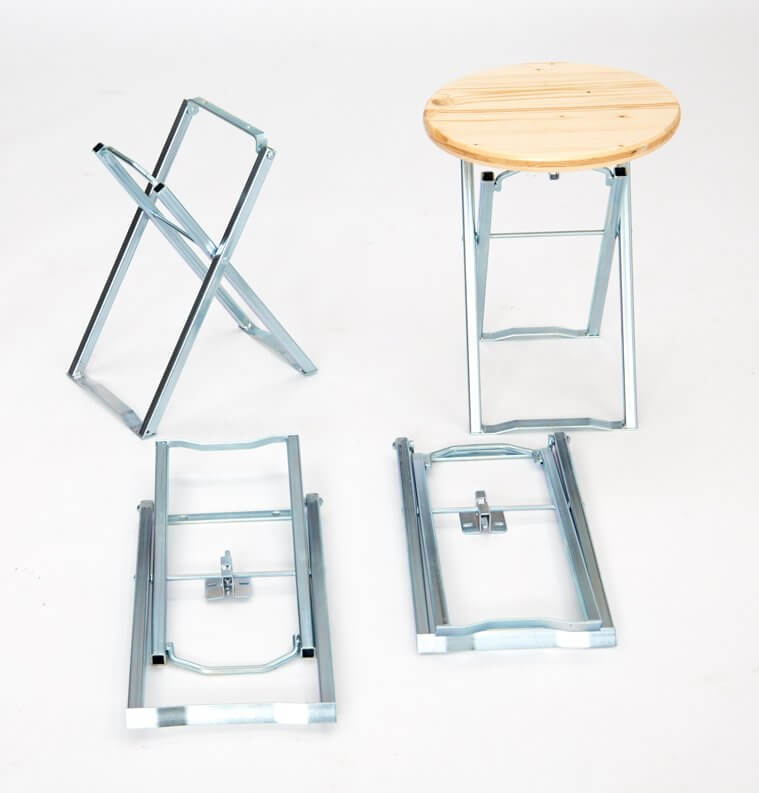

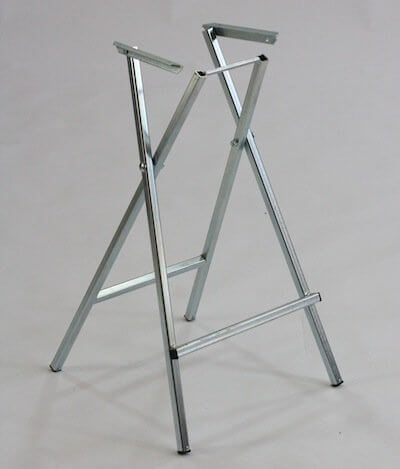

Scissor frame for stool
Folding frames for pub stool or bar stool No. 235 suitable for our high tables. Stools with these frames are folded, very space-saving.

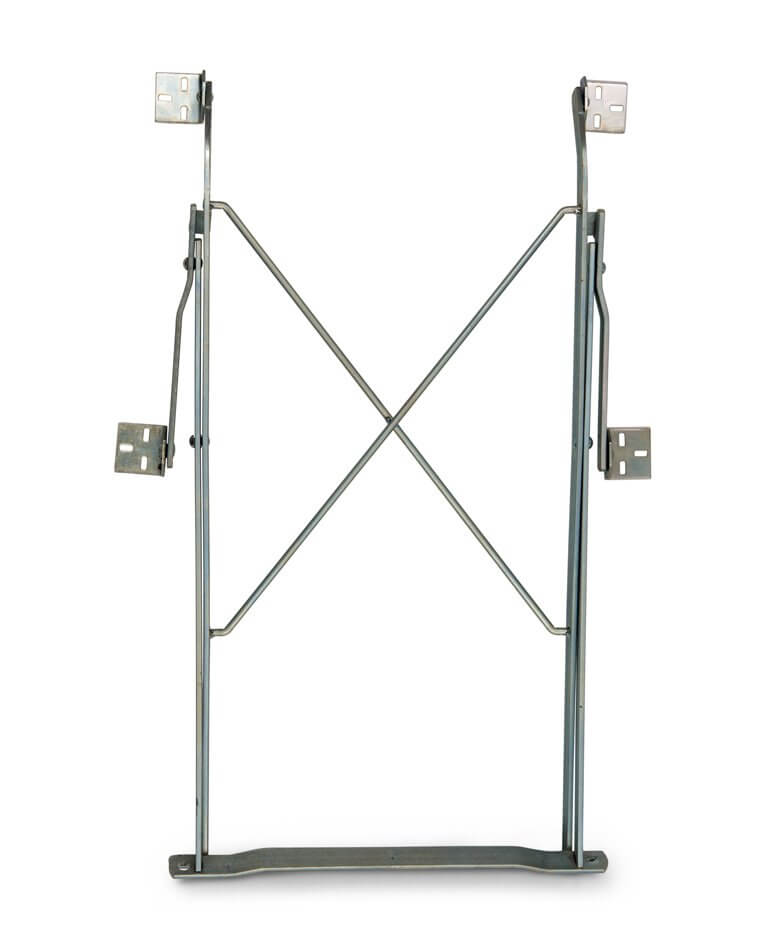

Table racks for square and round garden tables
Fitting garden table No. 230 galvanized. This fitting for garden table is ideal for panel sizes or battens from 60 cm to 100 cm, square or round. It is also possible to mount rectangular plates with an edge length of up to 110 cm.

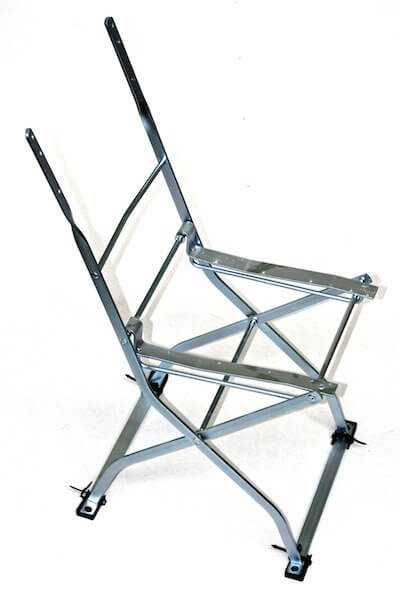

Frame for garden chairs
Fittings for garden chair and picnic chair No. 227. This fitting is suitable for two to three back rails and four to five seat rails. The floor protectors no. 159, shown in the picture, are optionally available and fit universally on all frames offered by us, for garden tables and garden chairs.
Table racks for rectangular garden tables
The table frame No.231 for garden tables is suitable for rectangular table tops or planking from slats. The recommended top size is between 110 cm x 60 cm and 160 cm x 90 cm.

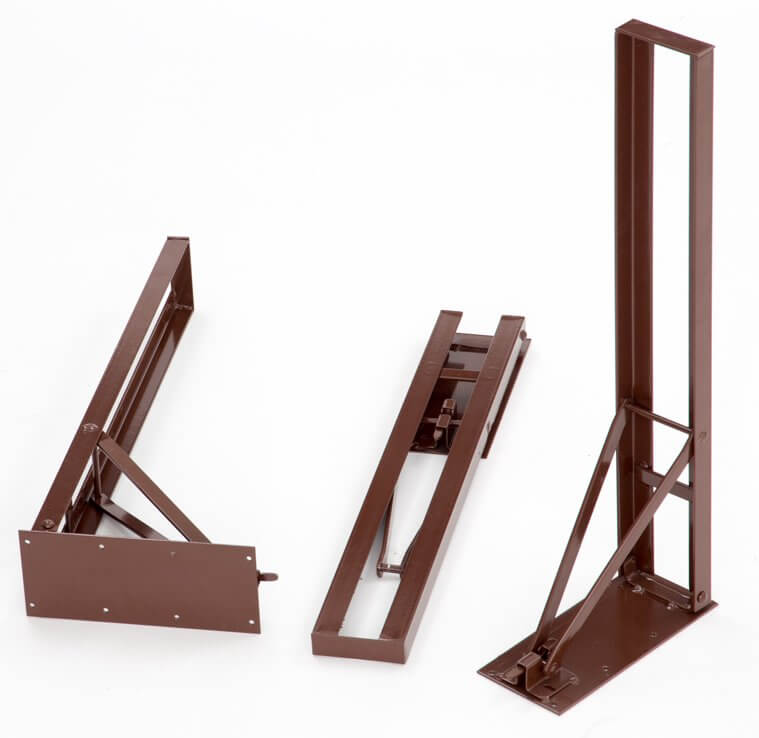

Universal table frame powder coated
Universal table frame brown powder-coated

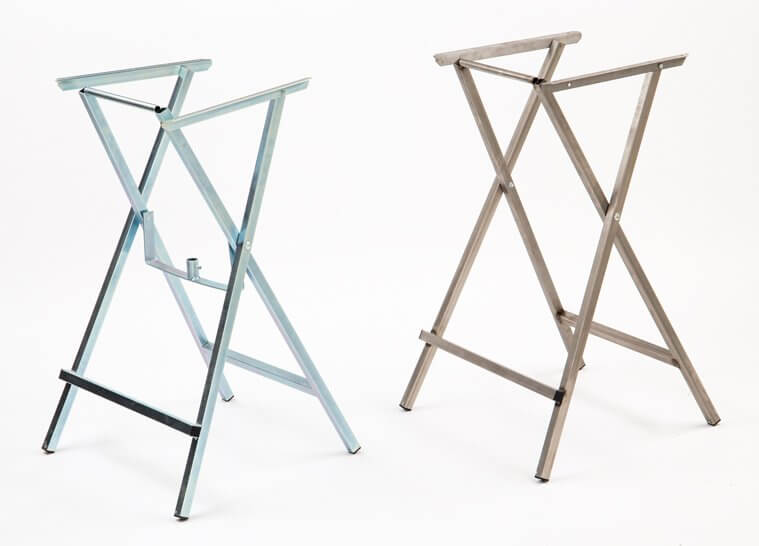

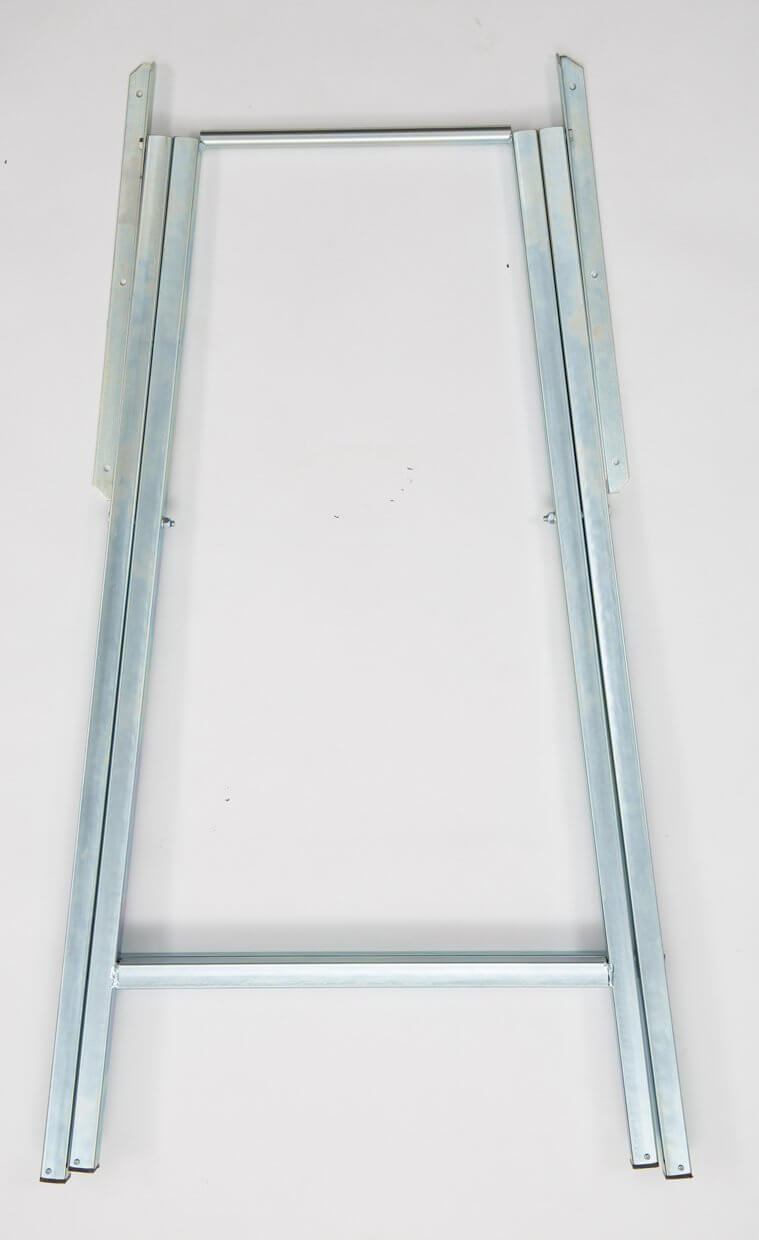

Standing table frames made of stainless steel
Left Standing table frame No.214, right Standing table frame made of stainless steel No.215. Square tube 30 x 30 x 2 mm and 25 x 25 x 2 mm. The standing table frames have exactly the same dimensions and material thicknesses. The left standing table frame is made of galvanised steel and the right one is not made of highly polished stainless steel.
Shears frame for benches galvanized
This scissor bench frame No.221 was developed by us and offers the highest stability and stability to date. benches with these table frames are just as flat when folded as benches with standard bench frames.

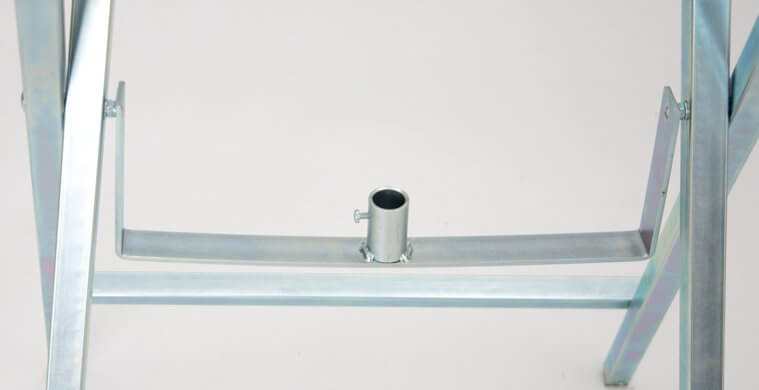

Umbrella holder, umbrella stand
Umbrella holder for high tables 4 mm x 30 mm flat steel, galvanised

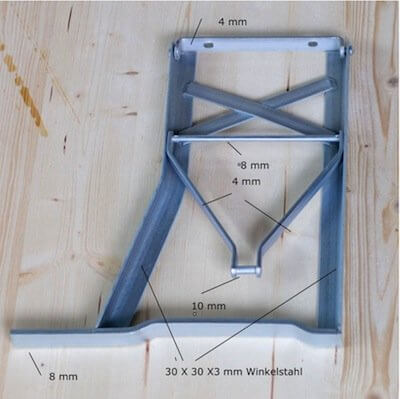

Bench racks for round benches
Fittings or frame no. 212 for round benches, galvanized
Angle steel 30 x 30 x 3 mm
Boom 4 x 25 mm flat steel with 10 mm round bar for snapping in the snap
Base plate 30 x 8 mm
The racks are NON CONTACT WELDED , because with contact-welded racks, the welds very often loosen.

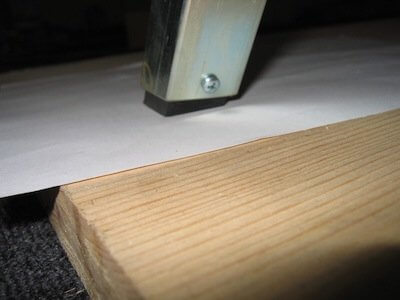

Bottom protector for high tables
On request, our standing tables can be equipped with diagonally cut floor protectors made of polyethylene.

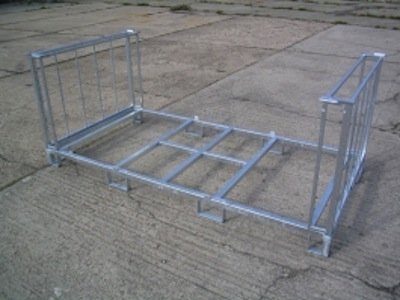

Transport rack for pub, picnic, garden and bar tables
Transport boxes, transport trolleys or transport racks no. 220 for all table widths, combined with all bench widths and also available for pub, picnic, garden and bar tables of different lengths. Available as 10, 15 and 20 transport box. The transport boxes can also be stacked when full.
