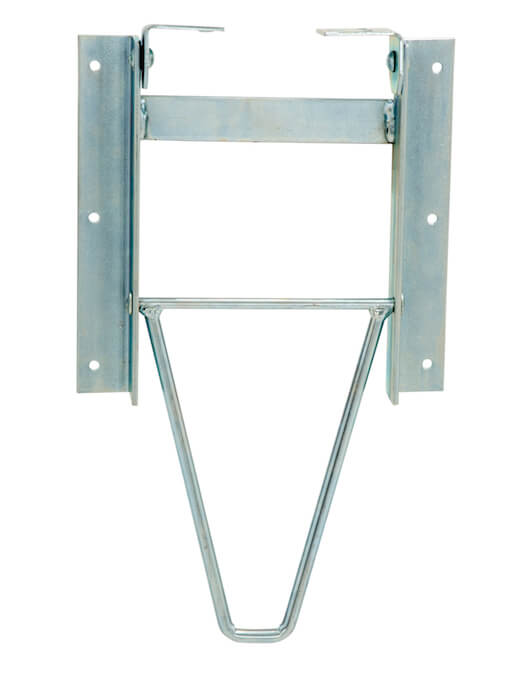

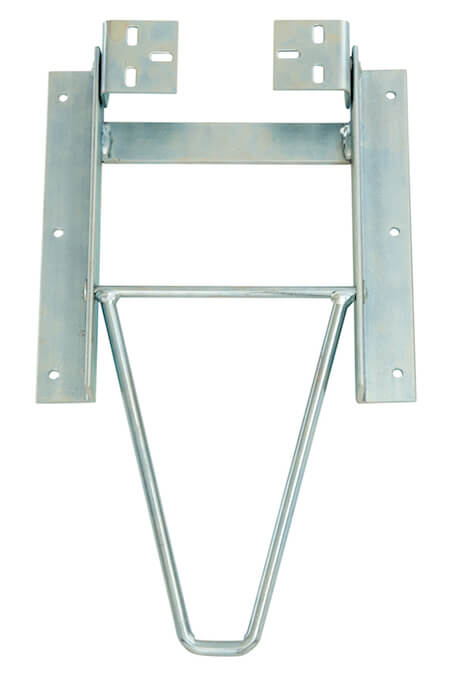

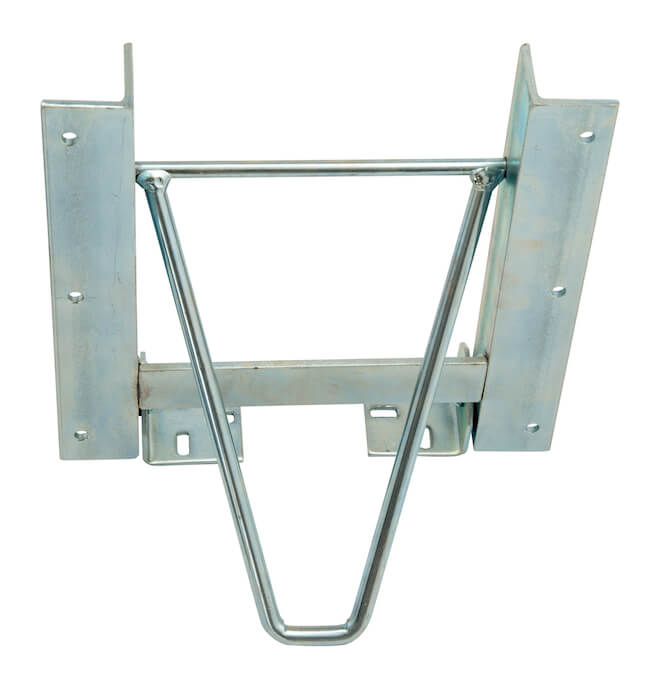

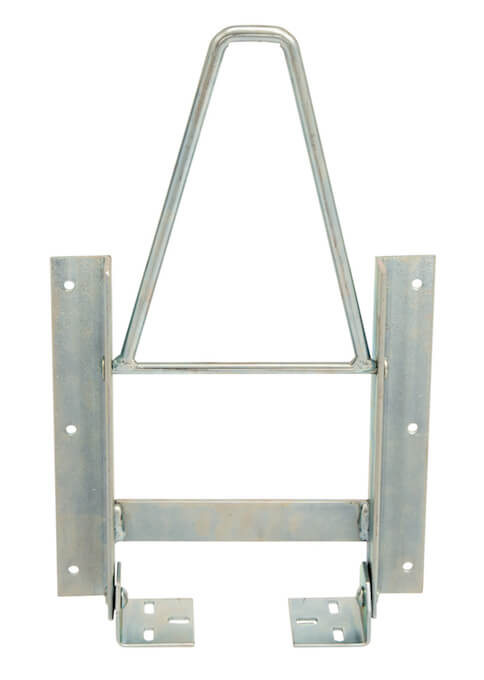

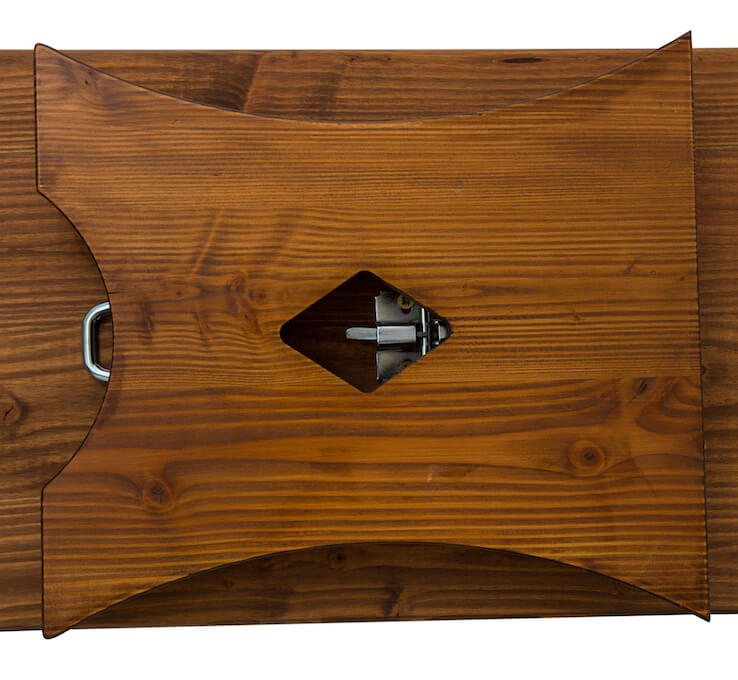

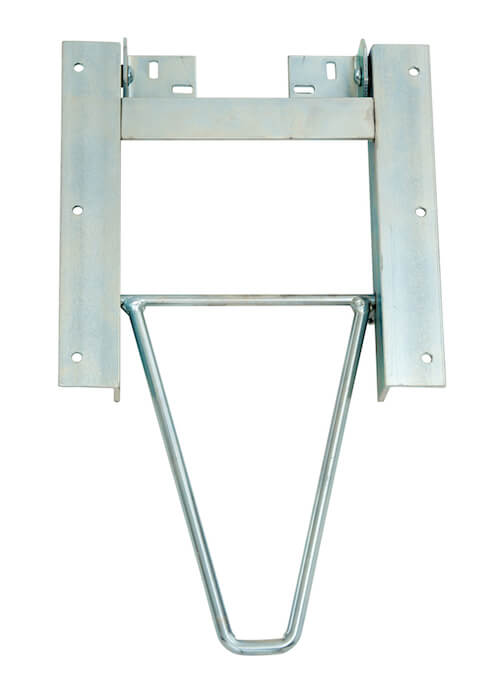

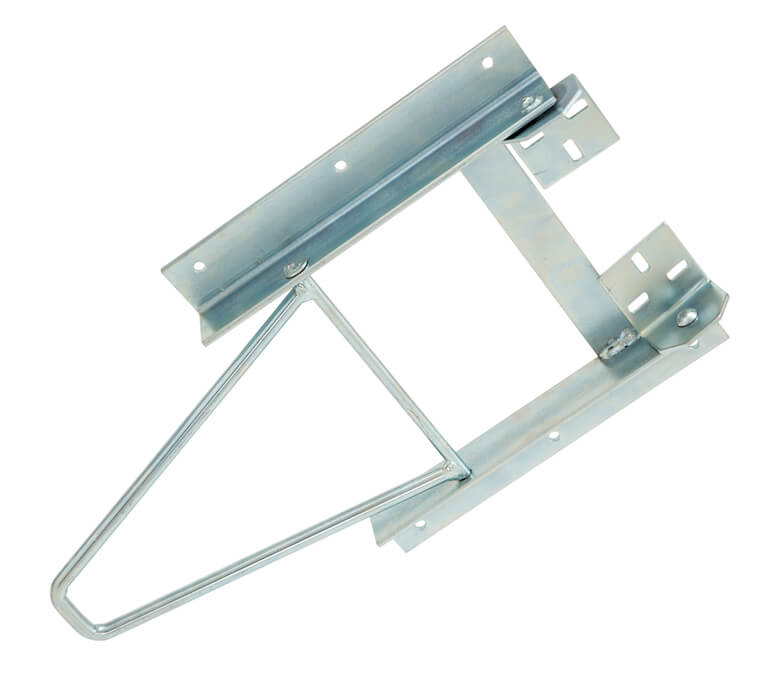

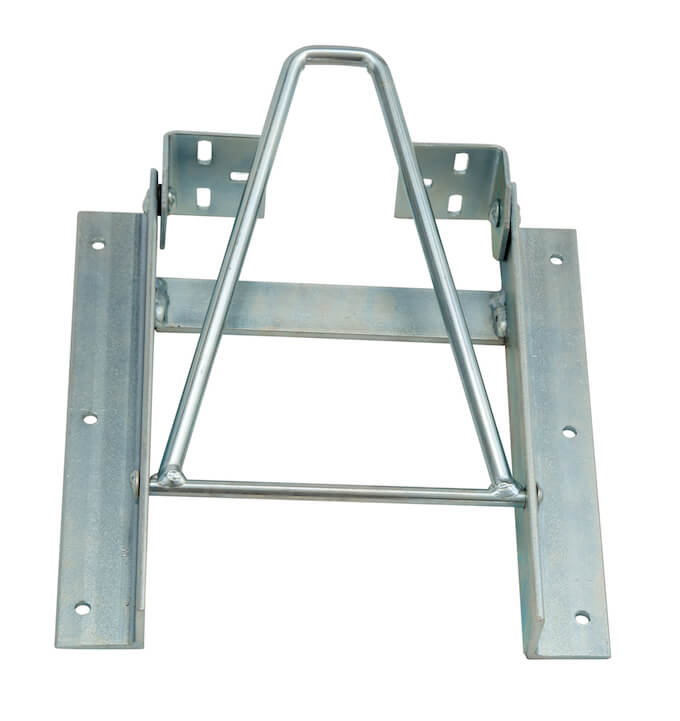

Bench frame model 237 is also used for tables under 60 cm table width. For tent sets with wooden legs and a table width of up to 60 cm, the frame is also ideally suited as a table frame.
Further cross struts or a welded-in cross for stabilization are not required at all for this type of frame. The stabilization is automatically taken over by the wood after screwing. If good wood panels are used, preferably in several layers, this variant is considerably more stable than metal frames.

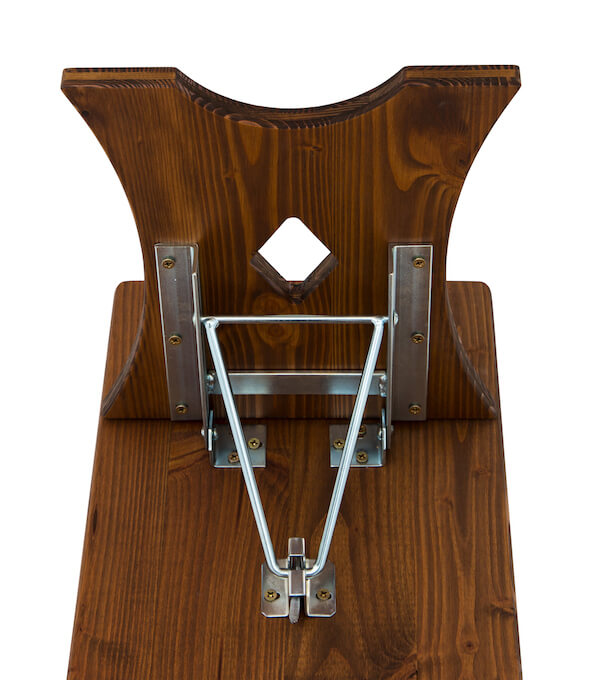

Very often table and benches sets with single wooden legs or wooden plates as legs are also called "Bench and table frames set with wooden application".

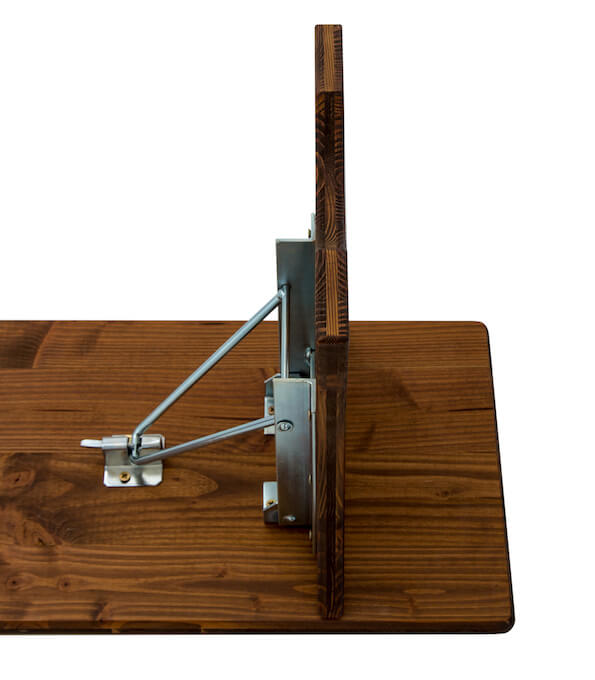

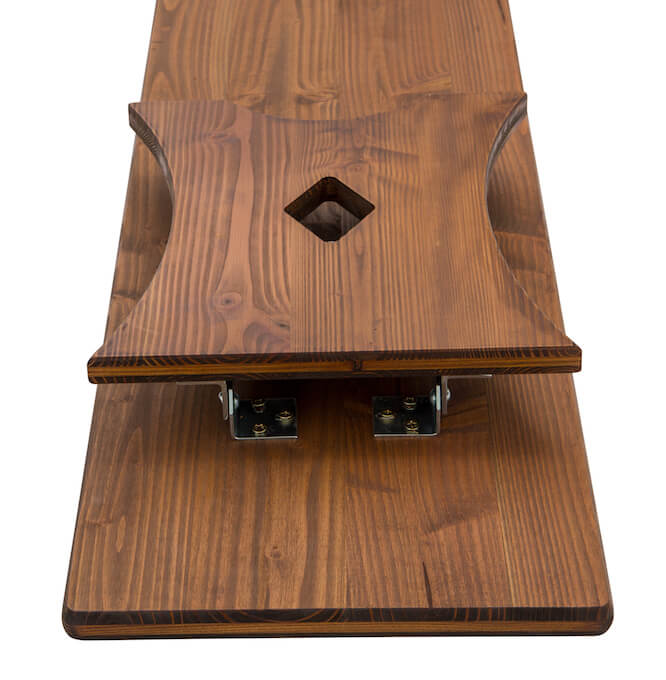

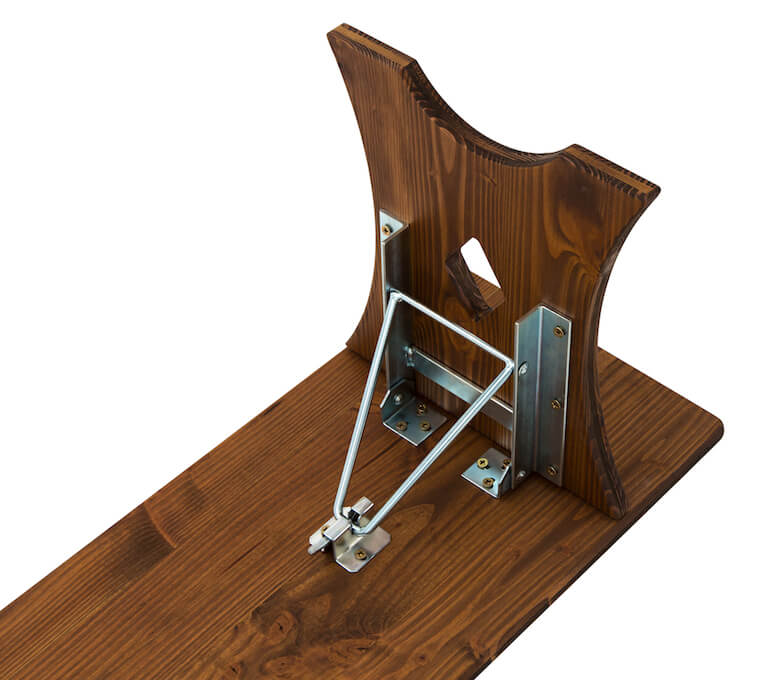

When mounting, it is essential to ensure that the wooden parts which are screwed to the frames require a distance of at least 3 mm from the bench or table top when erected. Without this distance, it is not possible to release the cantilever from the snap lock and fold in the frames.
The frames are galvanised or galvanised and can also be powder-coated. Powder coating is possible in all RAL colours with a few exceptions. A considerably cheaper version painted by dipping is also possible. Please note that we need a large amount of paint to be able to use the dipping process. The racks must be completely submerged in the paint in the dip tank.
